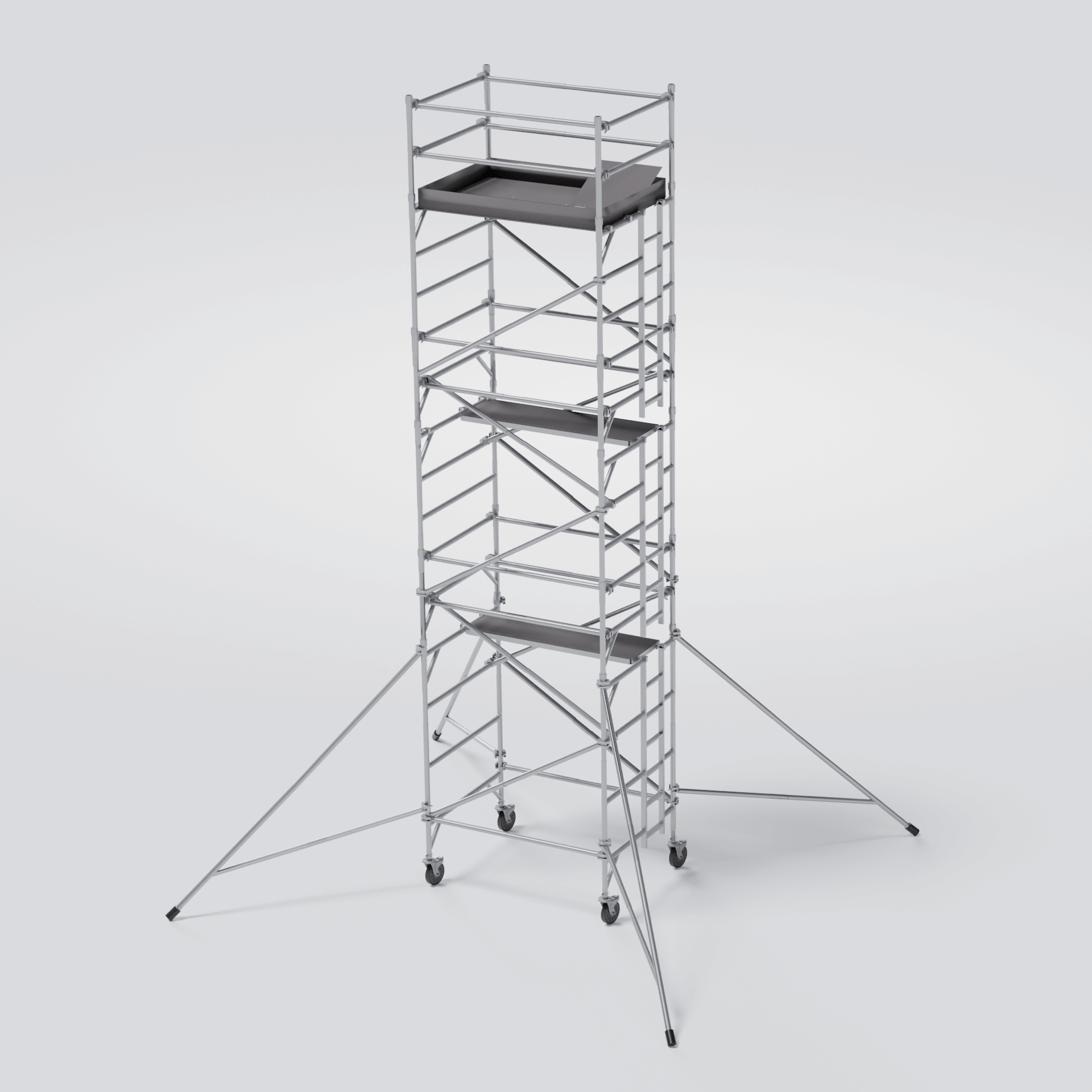

Wide <b>aluminium</b> scaffold tower 2,5 x 1,35 x 7,78 m.

Wide aluminium scaffold tower 2,5 x 1,35 x 7,78 m.

2338,00 € + VAT

Wide, 1.35m tall design ensures comfort and safety when working at higher heights. The aluminium scaffold tower is durable and lightweight. It is a high-quality aluminium scaffold tower for indoor and outdoor use. Frames with integrated ladders for a much more comfortable and safer climbing.

Categories: ,

Description

Includes:

Aluminium frame 1.35 x 1.86 m. 3
Aluminium frame with ladder 1.35 x 1.86 m. 3
Platform without trapdoor 2.5 m. 2
Platform with trapdoor 2.5 m. 1
Horizontal 2.5 m. 8
Diagonal 2.67 m. 6
Protective top frame 1.35 x 1 m. 2
Stabiliser 2.6 – 3.2 m. 2
Adjustable wheel (200mm) 4



Technical data:

  • Dimensions: 2.50 m. x 1.35 m. x 7,78 m.
  • Weight: 197,4 kg.
  • Working height: 7,78 m.
  • Platform height: 5,78 m.



  • Side frames with integrated ladders.
  • Aluminium frame diameter 50.8 mm.
  • Aluminium frame wall thickness 2 mm.
  • Aluminium alloy: 6061-T6.
  • Load capacity up to 272 kg. per platform or 1000 kg. for the entire tower, including the weight of the turret.
  • Durable, 200 mm. diameter, height-adjustable rubber wheels with brakes.
  • It is possible to choose 2.0 m. length towers.
